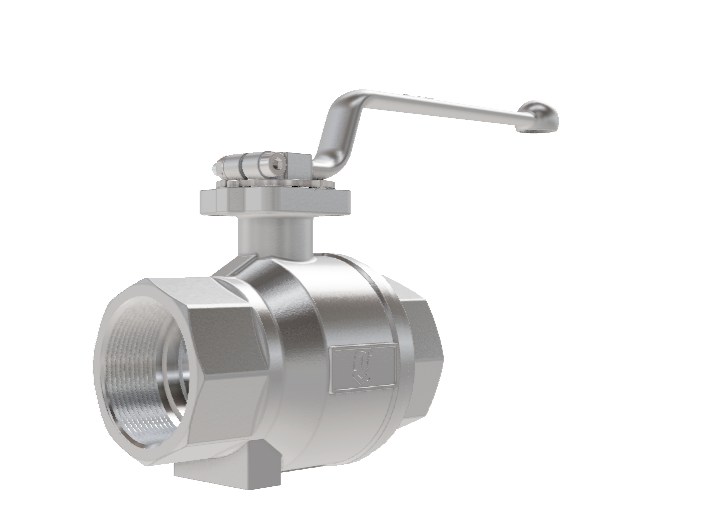

Válvula de bola para oxígeno GK06 de acero inoxidable, DN50 (2 pulgadas)
Válvula de bola para oxígeno GK06 de acero inoxidable (DN50 – 2″) Válvula de bola para oxígeno GK06 con rosca hembra (DN50 – 2″), diseño de paso total, juntas de PTFE/Viton, presión máx. de 30 bar.
| product | Oxygen ball valve |
|---|---|
| type | GK06 |
| manufacturer | NieRuf |
| diameter | DN50 – 2″ inch |
| connection | female thread |
| Seal steam | PTFE / Viton |
| ball seal | PTFE |
| media | oxygen |
| temperature | -20°C up to +60°C – depending on working pressure and media |
| max. pressure | 30 bar |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | 140mm |
| actuator | hand lever made of stainless steel 1.4301 |
| installation position | any position |
| product description | This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. Use oil- and grease-free and with lubricant suitable for oxygen. Individually packaged. |
