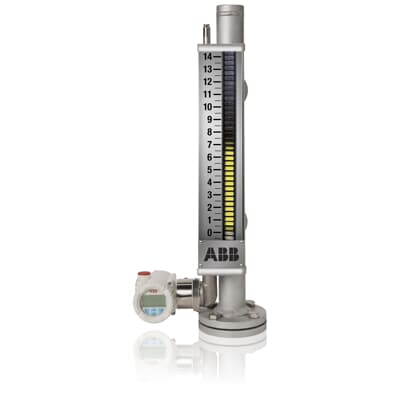

Transmisor de nivel magnetostrictivo ABB LMT200 de montaje externo
Transmisor de nivel magnetostrictivo ABB LMT200
LMT200.M1.S6.R1.T1.D1.L2.H1-CS..........R5 (ML: 2000 mm)
| Approval |
M1 |
FM, CSA, ATEX, IEC Combination Explosion Proof and IS |
| Probe Material |
S6 |
316L SS |
| Probe Style and Probe Type |
R1 |
0.625 in. Rigid Probe, -112 … 450 °F |
| Mounting Orientation |
T1 |
Top left connected electronic housing |
| Housing |
D1 |
Aluminum with 2 x M20 x 1.5 in. |
| Display |
L2 |
With Through the Glass (TTG) Push Buttons, Display and Glass Cover |
| Output |
H1 |
Single 4 … 20 mA + HART |
| SIL Certification |
CS |
SIL2 (HFT=0) and SIL3 (HFT=1) – certified acc. to IEC61508 |
| Calibration Type |
R5 |
5-point calibration verification certificate, factory default 100, 75, 50, 25 and 0 % of measurement length, or customer specified points |
| Measuring Length |
|
2000 mm |
